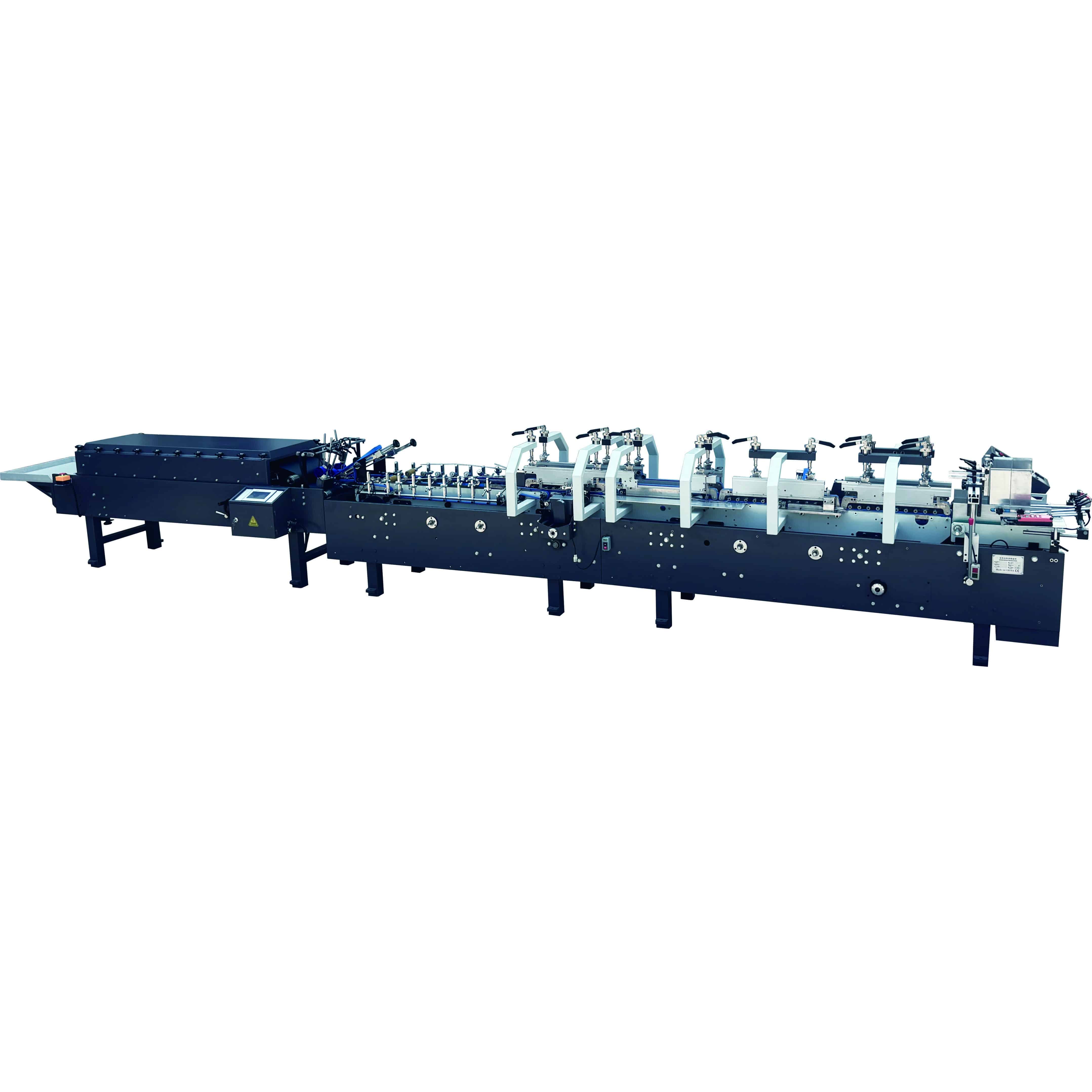

HL-ZH1050D ZH1250D ZH1450D Automatic Crash Lock Bottom Folder Gluer with Prefold

Machine Name: HL-ZH1050D ZH1250D ZH1450D Automatic Crash Lock Bottom Folder Gluer with Prefold

INTRODUCT

ZH-D folder gluer is specially designed for large straight line box, large pre-fold box and large crash lock bottom box. Its feeding width can be up to 1000mm. Larger sized folding section will increase the folding and gluing accuracy, and thus decrease the trumpet mouth box forming on the older generation model. Upper belt of ZH1200G can be adjusted separately, and thus for E corrugated box, the trumpet mouth box forming phenomena will also be decreased. Its motor can be separately independently and makes the collecting effect better. It is ideal equipment for large box packing factories.

TECHNICAL INDICATORS

1、Line speed：0~280m/min continuous tunable
2、Application of paper：210~700g/m2 paperboard .2 ply E/F corrugated board
3、Paste box basic form：Either side folds, either sides pre-fold, and crash lock bottom
4、Paper feeding：Automatic continuous feeding
5、Reverse mode：One or two, four fold 180 degrees, three fold 135 degrees and Crash lock bottom
6、Use adhesive：Cold glue
7、Power required：AC380V，6Kw
8、weight：3000kg
9、Outer size：10500×1300×1300mm
10、Counting range：0~999999 (automatic counting)

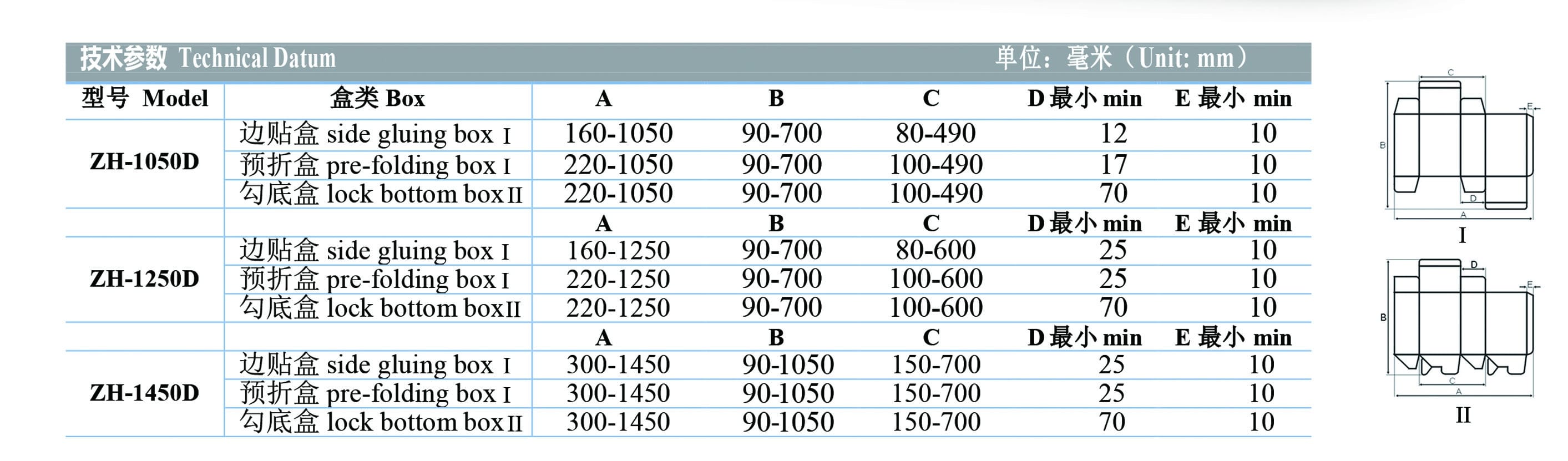

TECHNICAL INDICATORS

Video

Box Folder Gluer Machine

About us

Zhejiang Haoly Limited combines extremely competitive price, innovative technologies and long-standing exporting experience in the Post press machine, printing machine,and packaging machine, and quick printing machine.We are your best selection for printing and packaging industries.

In past ten years, Lanxi Jinhua Machine Company is Focusing on machine for wire-stitched exercise books, ruled and sheeting, soft and hard cover book.Can manufacture full automatic exercise book making machine, exercise book ruling machine, book sewing machine, casing in machine, hard cover making machine, three side trimmer, saddle stitching machine, glue binding machine, and other post press machine.

we also can provide kinds of printing and packaging machine, such as

1. Post press machine: paper cutting machine, laminating machine, creasing and die cutting machine, hot stamping machine, paper folding machine, paper collating machine, paper punching machine, eyelet machine

2. Printing Machine: Offset printing machine, Pre-press machine, Flexo Printing machine, card printing machine

3. Quick printing machine: small paper cutter, digital Creasing machine, small glue binding machine.

4. Paper product making machine: gluer folder, paper box machine, paper bag machine, paper cup machine, envelope making machine

FAQ

1. Are you a factory or trading company?
We are an actual factory and manufacturer with trading in the line of postpress machine and package machines for more than 10 years.

2. Why choose us?
1. 30 years of production experience with good quality. All our machines have got CE certificate.
2. Competitive price in the same level quality of paper cutting machines.
3. Thoughtful pre-sale and after-sale service. Any questions, pls feel free to contact us.

3. What about your payment term?
For most orders, payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery. And we also accept other way like L/C, wetern union etc.

4. What about the afterservice?
1. Uauslly ,most machine is stable and easy to operate, With the help of videos and instructions, you can quickly learn how to operate.
2. If still cannot operate, We offer online training and video instruction
3. If you need to dispatch an engineer, please contact us for detailed consultation

5. How dose your factory do regarding quality control?

Quality is our soul of company. Our people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed CE certification.

6. What about the spare parts?

We will provide all spare parts from the original factory
