Machine Name: HL-ZH-800A900A1000A pre-folding pasting box machine
INTRODUCT
ZH-800A/900A/1000A pre-folding pasting box machine uses belt 135 pre-folding (third folding line) and 180 pre-folding device pre-folding (first folding line) to achieve the purpose of pre-folding. After pre-folding, it is easier to open and shape, suitable for automatic packaging assembly line. It is widely used in the processing of medicine boxes, wine boxes, cosmetics boxes and so on. It is the ideal of packaging and printing industry. The equipment… The carton without pre folding can also be pasted.
TECHNICAL INDICATORS
1、Line speed：0~220m/min continuous tunable
2、Application of paper：210~700g/m2 paperboard .2 ply E/F corrugated board
3、Paste box basic form：One side, two sides.
4、Paper feeding：Automatic continuous feeding
5、Reverse mode：One or two, four fold 180 degrees, three fold 135 degrees.
6、Use adhesive：Solute type
7、Power required：3P 380、4.5kw
8、weight：2000kg
9、Outer size：8500×900×1300mm
10、Counting range：0~999999 (automatic counting)
TECHNICAL INDICATORS
TECHNICAL INDICATORS

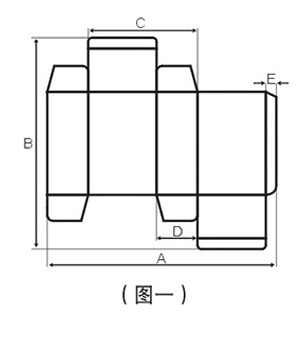

| 技术参数 Technical Datum 单位：毫米（Unit: mm） | |||||||||
| 型号
Model |
盒类
Box Type |
A 最大
A Max |
A最小
A Min |
B 最大
B Max |
B最小
B Min |
C 最大
C Max |
C最小
C Min |
D最小
D Min |
E最小
A Min |
|
ZH-800A |
边贴盒
Side Stickup Box |
600 | 110 | 500 | 65 | 270 | 50 | 7 | 6 |
| 预折盒
Pre-folding Box |
600 | 160 | 500 | 65 | 270 | 80 | 10 | 6 | |
|
ZH-900A |
边贴盒
Side Stickup Box |
700 | 110 | 500 | 65 | 320 | 50 | 7 | 6 |
| 预折盒
Pre-folding Box |
700 | 160 | 500 | 65 | 320 | 80 | 10 | 6 | |
|
ZH-1000A |
边贴盒
Side Stickup Box |
800 | 130 | 600 | 80 | 370 | 60 | 10 | 8 |
| 预折盒
Pre-folding Box |
800 | 180 | 600 | 80 | 370 | 90 | 15 | 8 | |
