HL-ZH-800G900G1000G Automatic straight-line folder gluer machine

Machine Name: HL-ZH-800G900G1000G Automatic straight-line folder gluer machine

INTRODUCT

ZH-800G/900G/1000G is the best-seller of our company, convenient operation, reasonable price and wide application, such as medicine box, wine box and gift box. It combines a variety of folder gluer functions: straight line box, pre-fold box, crash lock bottom box. The products discard the disadvantages of older generation folder gluer, it simplifies the complicated construction, reduces the difficulty of test run and decreases the machine’s cost. It becomes the main strength of the field of folder gluer with its unique advance.

TECHNICAL INDICATORS

1、Line speed：0~220m/min continuous tunable
2、Application of paper：210~700g/m2 paperboard .2 ply E/F corrugated board
3、Paste box basic form：One side, two sides.
4、Paper feeding：Automatic continuous feeding
5、Reverse mode：One or two, four fold 180 degrees, three fold 135 degrees.
6、Use adhesive：Solute type
7、Power required：3P 380V、4.5kw
8、weight：2000kg
9、Outer size：8500×900×1300mm
10、Counting range：0~999999 (automatic counting)

TECHNICAL INDICATORS

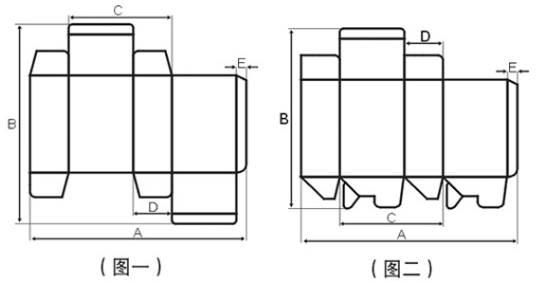

技术参数 Technical Datum 单位：毫米（Unit: mm）
型号 Model	盒类 Box Type	A 最大 A Max	A最小 A Min	B 最大 B Max	B最小 B Min	C 最大 C Max	C最小 C Min	D最小 D Min	E最小 A Min
ZH-800G	边贴盒（图一） Side Stickup Box （I）	600	110	500	65	270	50	7	6
	预折盒（图一） Pre-folding Box(I)	600	160	500	65	270	75	10	6
	勾底盒（图二） Lock Bottom Box(II)	600	160	500	65	270	80	40	6
ZH-900G	边贴盒（图一） Side Stickup Box （I）	700	110	500	65	320	50	7	6
	预折盒（图一） Pre-folding Box(I)	700	160	500	65	320	75	10	6
	勾底盒（图二） Lock Bottom Box(II)	700	160	500	65	320	80	50	6
ZH-1000G	边贴盒（图一） Side Stickup Box （I）	800	130	600	80	370	60	10	8
	预折盒（图一） Pre-folding Box(I)	800	180	600	80	370	90	15	8
	勾底盒（图二） Lock Bottom Box(II)	800	180	600	80	370	90	60	8

Video

About us

Zhejiang Haoly Limited combines extremely competitive price, innovative technologies and long-standing exporting experience in the Post press machine, printing machine,and packaging machine, and quick printing machine.We are your best selection for printing and packaging industries.

In past ten years, Lanxi Jinhua Machine Company is Focusing on machine for wire-stitched exercise books, ruled and sheeting, soft and hard cover book.Can manufacture full automatic exercise book making machine, exercise book ruling machine, book sewing machine, casing in machine, hard cover making machine, three side trimmer, saddle stitching machine, glue binding machine, and other post press machine.

we also can provide kinds of printing and packaging machine, such as

1. Post press machine: paper cutting machine, laminating machine, creasing and die cutting machine, hot stamping machine, paper folding machine, paper collating machine, paper punching machine, eyelet machine

2. Printing Machine: Offset printing machine, Pre-press machine, Flexo Printing machine, card printing machine

3. Quick printing machine: small paper cutter, digital Creasing machine, small glue binding machine.

4. Paper product making machine: gluer folder, paper box machine, paper bag machine, paper cup machine, envelope making machine

FAQ

1. Are you a factory or trading company?
We are an actual factory and manufacturer with trading in the line of postpress machine and package machines for more than 10 years.

2. Why choose us?
1. 30 years of production experience with good quality. All our machines have got CE certificate.
2. Competitive price in the same level quality of paper cutting machines.
3. Thoughtful pre-sale and after-sale service. Any questions, pls feel free to contact us.

3. What about your payment term?
For most orders, payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery. And we also accept other way like L/C, wetern union etc.

4. What about the afterservice?
1. Uauslly ,most machine is stable and easy to operate, With the help of videos and instructions, you can quickly learn how to operate.
2. If still cannot operate, We offer online training and video instruction
3. If you need to dispatch an engineer, please contact us for detailed consultation

5. How dose your factory do regarding quality control?

Quality is our soul of company. Our people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed CE certification.

6. What about the spare parts?

We will provide all spare parts from the original factory
