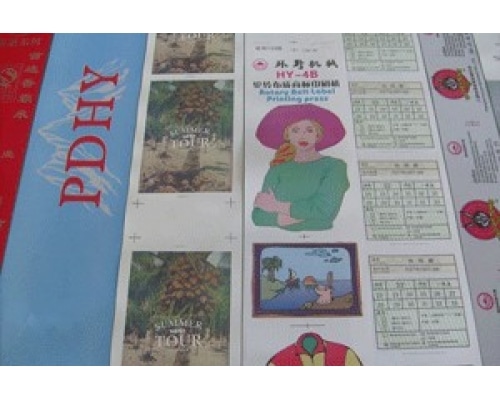

HLSB-4B High Speed Rotary Four color Label Printing Machine is a classical product among garment label printing machines. Using resin plate, it is are suitable for nylon taffeta and polyester satin label printing. It can complete stable, accurate, multi-color and two-sides printing on different fabric and paper tape materials at high speed. The printing quality of the machine is not affected by the tension of materials and the printed small characters looks clear and the registration is precise. It is the first choice of tag/label printing in garment, toys, gloves, trunks and briefcases industries.

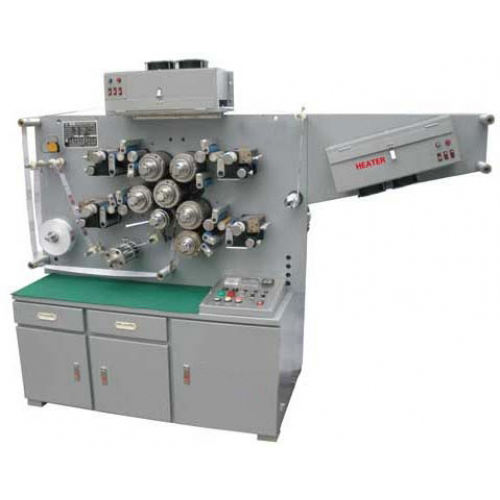

HLSB-4B High Speed Rotary Four color Label Printing Machine
Specifications
Model | HL-2 | HL-3B | HL-4B | HL-7B | HL-6T | |||
Front Color | 2-Colors | 3-Colors | 4-Colors | 6-Colors | 5-Colors | |||
Double Side | Front | 2 | 2 | 3 | 6 | 5 | 4 | 5 |
Reverse | 0 | 1 | 1 | 1 | 2 | 3 | 1 | |
Max. Feeding width | 100mm | 100mm | 100mm | 100mm | 100mm | |||
Max. Printing width | 400mm | 400mm | 100mm | 100mm | 100mm | |||
Reverse Printing | No | Yes | Yes | Yes | Yes | |||
Printing Speed | 0-60m/Min 6T Digital Printing Speed 25M/Min | |||||||
Power/Voltage | 2KW/220V | 2.2KW/220V | 2.2KW/220V | 3KW/220V | 3.5KW/220V | |||
Size L*W*H |
1800 *820 *1450 |
2100 *820 *1550 |
2100 *820 *1550 |
2470 *820 *1730 |
2470 *820 *1730 |
|||
Machine Weight (KG) | 700KG | 750KG | 850KG | 1200KG | 1300KG |
