HL-YTP4100/4100BFourColorsadhesivelabelPrintingMachine

Label Printing Machine

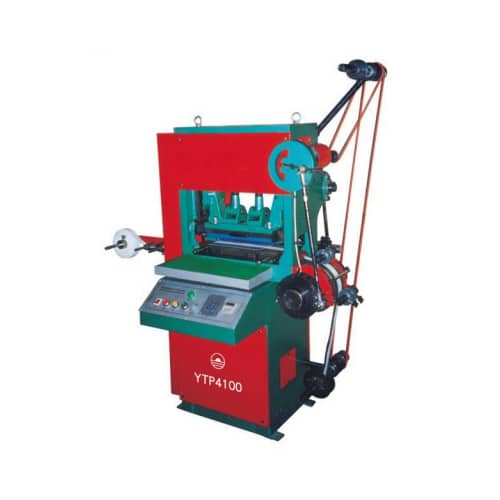

HL-YTP4100/4100B Four Colors adhesive label Printing Machine

HL-YTP4100/4100B Four Colors adhesive label Printing Machine is designed for fabric & simple adhesive printing in roll form. For materials like nylon taffeta and polyester satin & adhesive paper etc. Automatically in line with printing & die cutting in one process, (only 3 colors with die cut attached). This letter press system is suitable for photopolymer plate, zinc and photo-engravers plate printing. It is the desirable machine for ribbon, simple adhesive, bar-code & letter printing etc. YTP 4100B is especially for double sides printing in one process. Speed must less than 2500pcs/hour to allow drying for printed area during reverse process. Flip sides of the printing sector   Specifications Model YTP 4100 YTP 4100B Max.Printing Width 100mm Max.Printing Length 180mm…

  • Product Detail
  • Features

HL-YTP4100/4100B Four Colors adhesive label Printing Machine is designed for fabric & simple adhesive printing in roll form. For materials like nylon taffeta and polyester satin & adhesive paper etc.

Automatically in line with printing & die cutting in one process, (only 3 colors with die cut attached). This letter press system is suitable for photopolymer plate, zinc and photo-engravers plate printing. It is the desirable machine for ribbon, simple adhesive, bar-code & letter printing etc.

YTP 4100B is especially for double sides printing in one process. Speed must less than 2500pcs/hour to allow drying for printed area during reverse process.

Flip sides of the printing sector



Specifications

Model YTP 4100 YTP 4100B
Max.Printing Width 100mm
Max.Printing Length 180mm
Printing Speed 50-5000imp/h
Front&Back Printing Only Front Front&Back Printing
Power/Voltage 1.5KW/220V 2.5KW/220V
Size
L*W*H
1450*850*1450mm
Machine Weight 600KG 620KG
