Haoly Machine
Machine Name: HL-G60 G65 Intelligent Frequency Conversion Wireless Glue Binding Machine
Description:

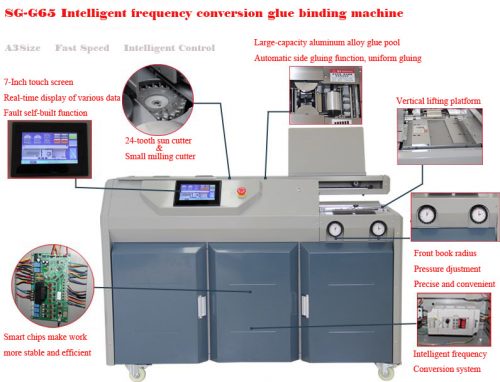

- Control system: 7-inch touch screen operation, fault display, automatic intelligent detection, double-speed operation of frequency conversion motor.

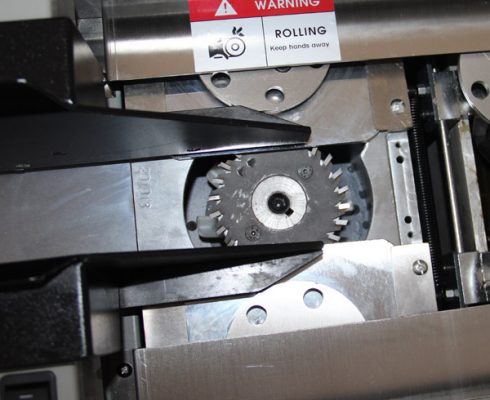

- Milling cutter: 24-tooth sun cutter + double small milling cutter milling back, powerful grooving and uniform glue application.
- Perfect binding mode: The binding mode can be quickly selected according to the thickness of the perfect binding book, and the machine can adjust and run intelligently.

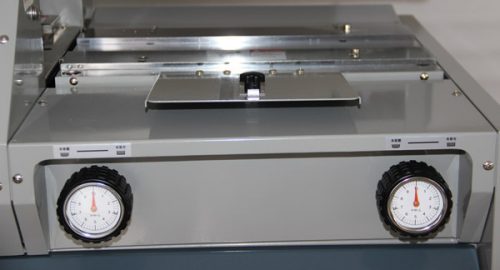

- Vertical lifting platform design: the clamping and cover table lifting are controlled by a torque motor, and the book radius angle and pressure display adjustment.
- Linear double guide rail design: excellent running stability of the trolley, frequency conversion system control, accurate parking glue, with an error of 0.02 mm.

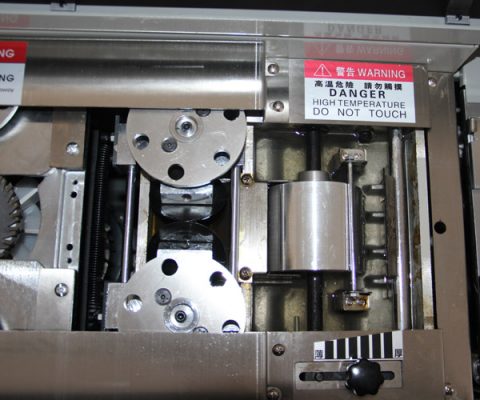

- All-aluminum alloy glue tank design: large-capacity glue pool, sufficient amount of thick book glue, no need to add glue frequently, side glue and back glue pool are separated, the temperature of the glue pool can be controlled separately, it can be heated for a long time, and the glue is not easy to age. Single rubber wheel + side rubber, back rubber wheel for gluing, with side gluing function, evenly spread about 6 mm of side gluing on the side of the book, making the book after gluing more concise and beautiful.
- Machine structure: heavy-duty frame structure, thickened body steel plate, superior stability performance.
Detailed Data:
|
| Model | G60 |
| Max. binding length | 320mm |
| Max. binding thickness | 60mm |
| Slippage type | beeline |
| Binding speed | 200~300books/hour |
| Display | LCD |
| Milling cutter | 24 teeth sunknfie + milling knife |
| Ready time | 30-35 minutes |
| Voltage and power | 220V/50HZ, 1600W |
| Packing size | 146cm*75cm*120cm |
| Gross weight | 230kgs |

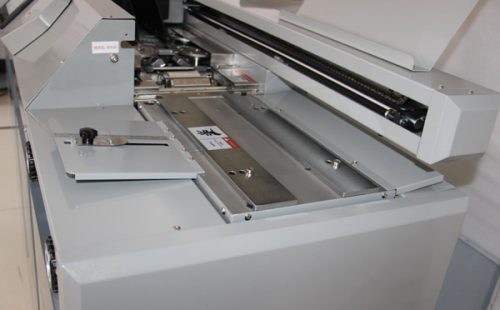

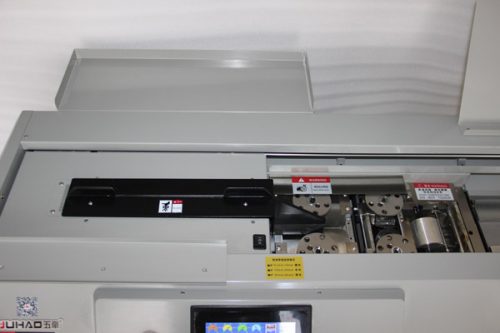

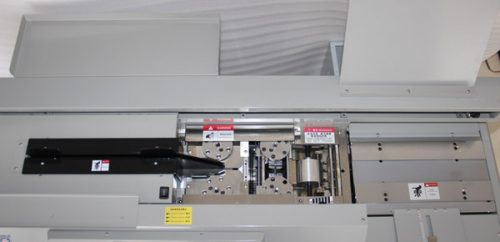

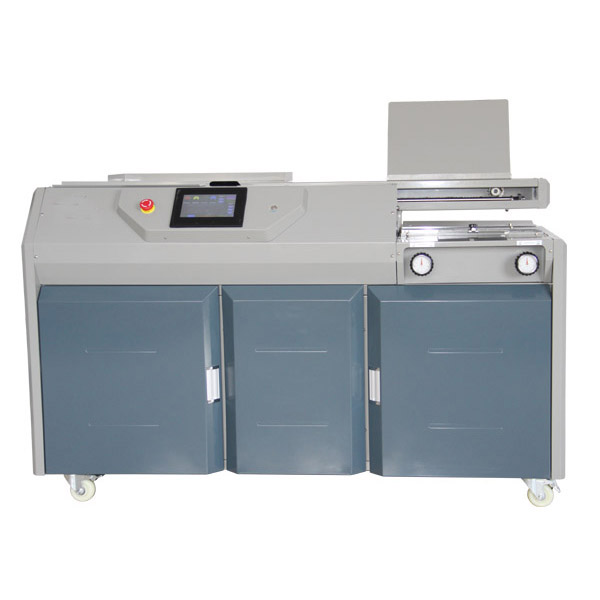

Photo for HL-G60 G65 Intelligent Frequency Conversion Wireless Glue Binding Machine
Sample for Glue Book Binding Machine
Video
