Machine Name: HL-60M A3/A4 Size Hot Melt Glue Binding Machine with side glue
Description:
The Perfect Glue Binding Machine 60M is suitable for soft covers, pads, reports binding and other place.
The machine is very simple to using but still offers a professional finish to books and documents. It’s been takes short time to glue binding the document spine and never off the pages. All our offered consumption of glue is accords with environmental protection of EU standard ( for separately sale.)
This machine would be ideal for any digital printers and graphic owners looking to get into perfect binding market.
* Perfect and professional binding effect
* Manual adjustment platform to make different book spine in round or square shape.
* Precise control binding and NEVER OFF pages
* Very easy to operate through button key
* Fast and efficient speed to 400 books per hours
* With max binding length for a3 size (420mm)
* With max binding thickness to 60mm
* 1pcs glue with side glue function
Detailed Data:
| Model | 60M-A3 |
| Max Binding size(mm) | 420mm |
| Max Binding Thickness(mm) | 60mm |
| Motor power | AC220V ±10% 50HZ 1.5KW |
| Binding Speed | 200-400books/h |
| Milling Cutter | Solar Cutter&Small Cutter |
| Collect paper and dust | Yes |

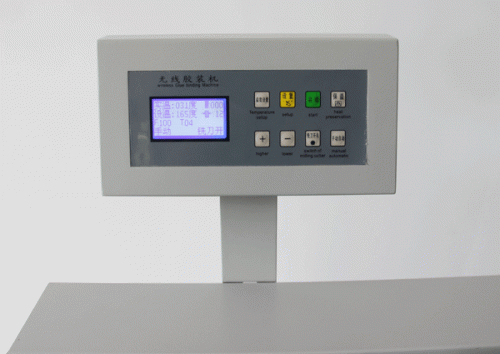

| Computer control | LCD Screen |
| N.W. | 200KG |
| G.W. | 220KG |
| Packing | 158*73*105cm |
| Glue Wheel | 1 |
| Side Glue | Yes |
| Waring Up | About 25mins |
| Model | 60M-A4 |
| Max Binding size(mm) | 380mm |
| Max Binding Thickness(mm) | 60mm |
| Motor power | AC220V ±10% 50HZ 1.5KW |
| Binding Speed | 200-400books/h |
| Milling Cutter | Solar Cutter&Small Cutter |
| Collect paper and dust | Yes |
| Computer control | LCD Screen |
| N.W. | 190KG |
| G.W. | 210KG |
| Packing | 150*73*105cm |
| Glue Wheel | 1 |
| Side Glue | Yes |
| Waring Up | About 25mins |

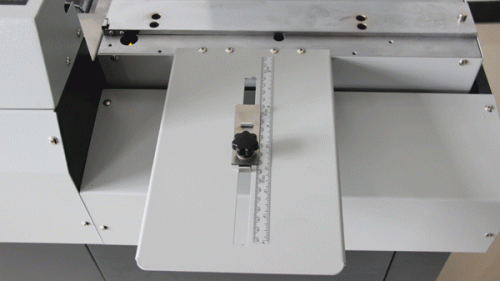

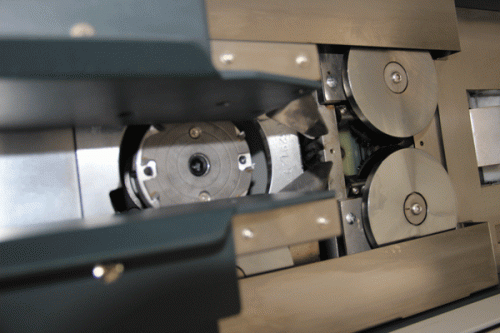

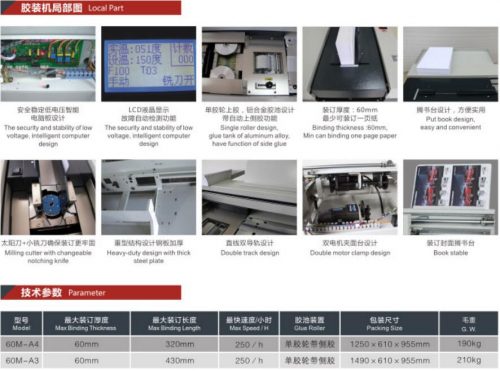

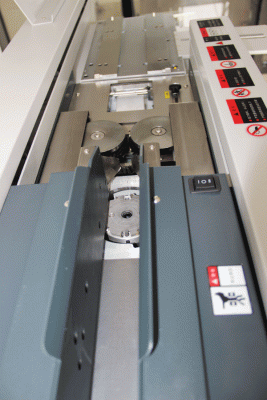

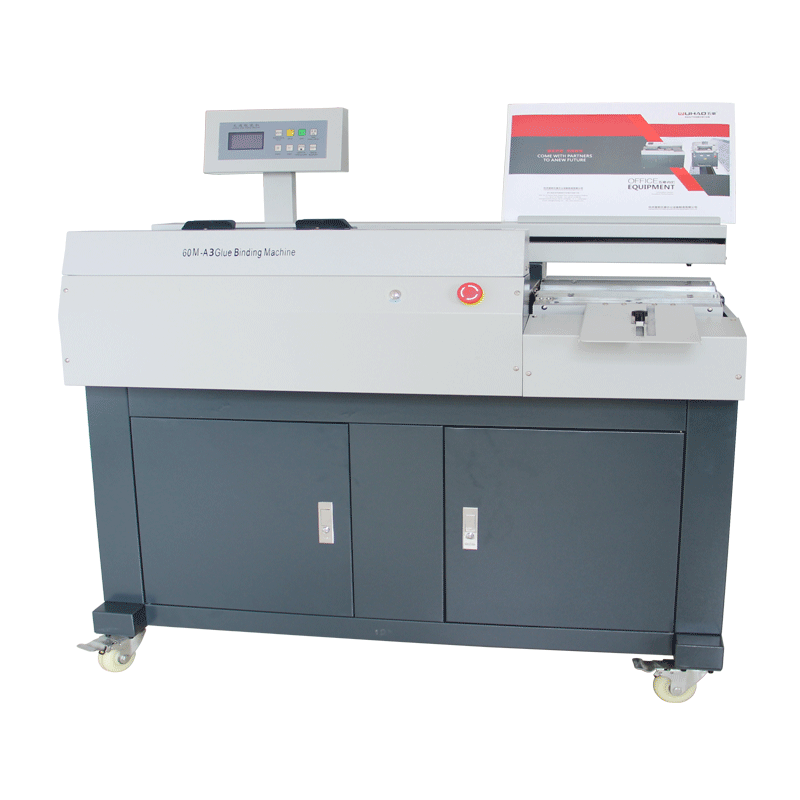

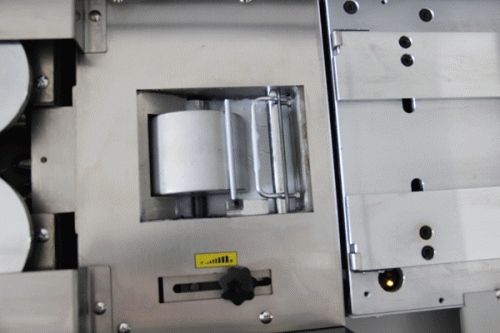

Photo for HL-60M A3/A4 Size Hot Melt Glue Binding Machine with side glue
Sample for Glue Book Binding Machine
Video
