Haoly Machine
LQD8E combined saddle stitching line can set up pages, binding, book and close-cut into modern book binding equipment, high efficiency, processing range, measurement and control functions, can be widely used in large and medium-sized enterprises printing and binding books and catalogues, such as horse riding and cutting job.
It mainly composed by the ride-page machine, binding machine, three-knife grimmer, book collection in part ( a straight line closed book, closed book at the choice), electrical systems and testing control systems components, among which the number of ride-page machine can be equipped according to the actual needs of customers, there is a large space of selection.
Specificații:
Advanced control technology of photoelectric detection, the protect the detection of accuracy and stability of the control system.
Ride page using positive airway pressure devices, the books fall down more smoothly.
Three noodle cutting machine is designed according to the large format, with a large cutting format

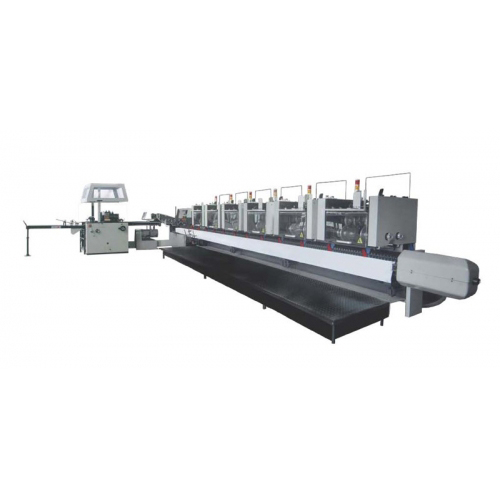

combined saddle stitching line
Date detaliate:
The highest rate of job: 12000 pieces ( 32 mo duplex)/hour
The largest-format before cutting: 450x310mm
The largest-format after cutting: 440x300mm
The largest format double-32k after cutting: 300x217mm
The smallest format doulbe-32k after cutting: 148x105mm
The max. Finished thickness after cutting: 8mm
Machine net weight: 7000kg
Dimensiuni: 10000x5400x1650mm
