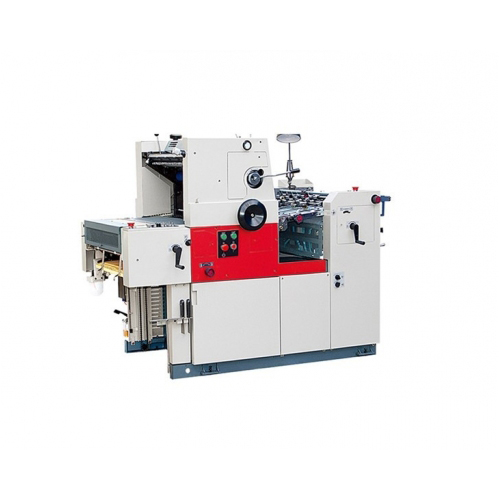

HL-JY47II/56II Economie O mașină de imprimare a culorilor One Color Offset 1. Operare ușoară: dampening, inking and pressing are operated by one handle at different level. The pressing cylinder on/off is controlled by Electric-Eye exactly and reliably.
2. Exact registration: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder registration of up/down.
3. Dampening and inking separated: Dampening system is separated from inking system, which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink.
4. Preset counter: This machine adopts electromagnetic preset counter. If the quantified printing work finishes, the paper feeding stops automatically.
5. Double sheets detection: It can avoid the problem such as double sheets, paper overlap and non-stop.
6. The whole machine is controlled by PLC. There are functions such as auto press, auto stop while paper jam, powder jet, steps running forward and backward.
o mașină de imprimare a unei culori compensate
II-type machine has a new ink supply system:
The machine adopts a perfect ink system, three form ink rollers and two form dampening rollers. The structure fully assure enough ink supply and improve the printing quality
Date detaliate:
| Model | 47A/47ANP/47II/47IINP | 56A/56ANP/56II/56IINP |
| Max. Dimensiunea hartiei | 470*365mm | 560*400mm |
| Max. Printing size | 450*345mm | 550*375mm |
| Plate size | 470*395*0.15mm | 560*417*0.15mm |
| Blanket size | 470*420*1.95mm | 560*460*1.95mm |
| Paper weight | 28-250g/m2 | 28-250g/m2 |
| Ink rollers qty | A series:
Main system 10 pcs(2 form ink rollers); NP system 6pcs (2 form ink roller) II series: Main system 14 pcs (3 form ink rollers); NP system 6pcs (2 form ink roller) |
|
| Dampening rollers qty | A series: 4pcs(1 form dampening rollers)
II series: 5pcs(2 form dampening rollers) |
|
| Min space between codes | 48mm vertical code:
vertical 71mm horizontal 48mm 60mm horizontal code: Vertical 47mm horizontal 60mm |
|
| Registering mechanism | Roller type side lay | |
| Viteza de imprimare | Main moto:1.1kw/220V Pump motor: 0.55kw/220V | |
| Dimensiunea mașinii | 47A/47II:
1760*935*1340mm 47ANP/47IINP 2000*935*1340MM |
56A/56II:
1760*1035*1340mm 56ANP/56IINP 2000*1035*1340MM |
| Greutate | 560/660/600/680kg | 620/720/660/740kg |
