HLMB-720A/920A/1100A/1400A semi-automatic film lamination machine for paper with automatic cutting Configuration
·Omron frequency converter is equipped for infinitely variable speed, and the operator can change the machine’ s speed easily and guarantee the machine’ s running stable.
·One-piece construction design makes the machine run more stably, and lengthens the machine’ s lifetime.
·Manual paper feeding.
·Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
·High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
·Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
·Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
·The combination of air expansion shaft and braking device can adjust film release tension and speed.
·Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
·Film perforating wheel perforates film edge for the automatic cut of laminated paper.
·Anti-curvature device: when going through anti-curvature device, the laminated paper shall be leveled at once and wont curve again after cut.
·Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the workable paper size on the text screen.
·The cut paper is sent to paper receiving table. And the table height is adjustable upon applications.

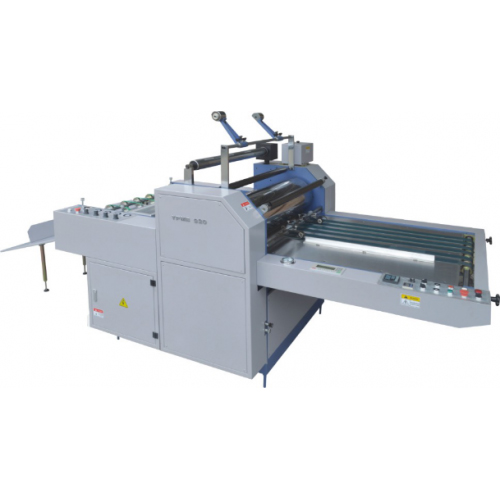

semi-automatic film lamination machine
Detailed Data:
Model HLMB-720A HLMB -920A HLMB -1100A HLMB -1400A
Max Laminating Width 680mm 880mm 1040mm 1300mm
Max Laminating Speed 0-30m/min
Laminating Temperature ≤130℃
Power 13kw 15kw 16kw 17kw
Total Weight 1600kg 1800kg 2000kg 2300kg
Overall Dimensions 4000x1500x1600mm 4200x1700x1600mm 4000x1900x1600mm 4500x2300x1600mm
