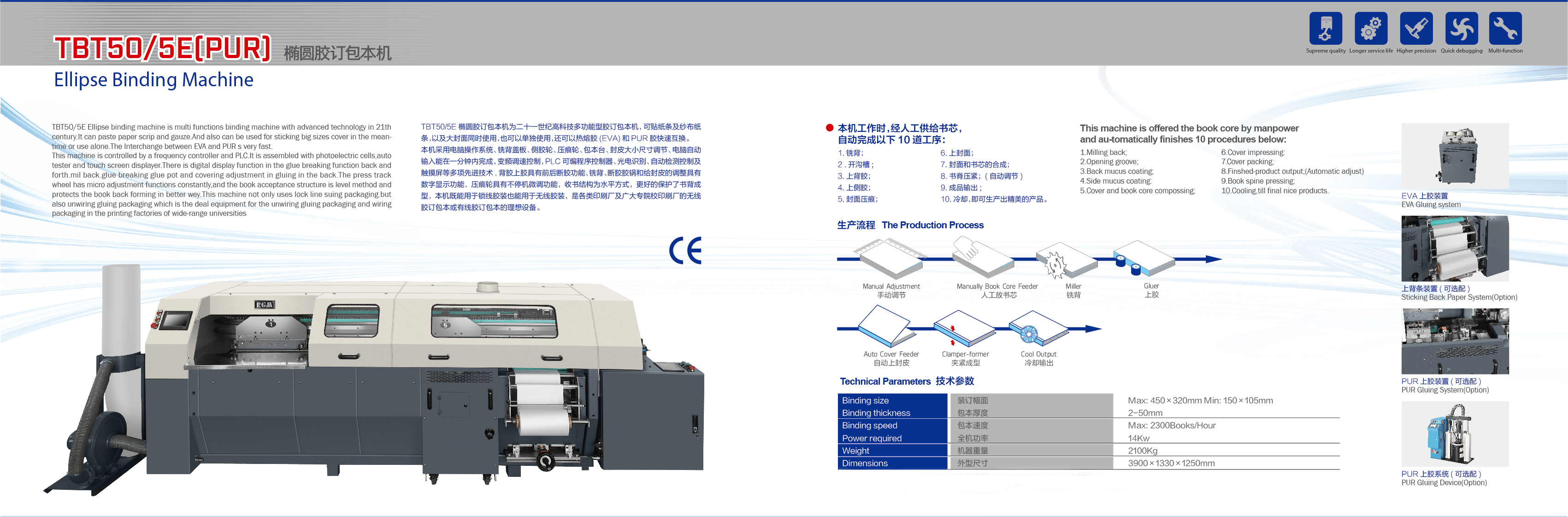

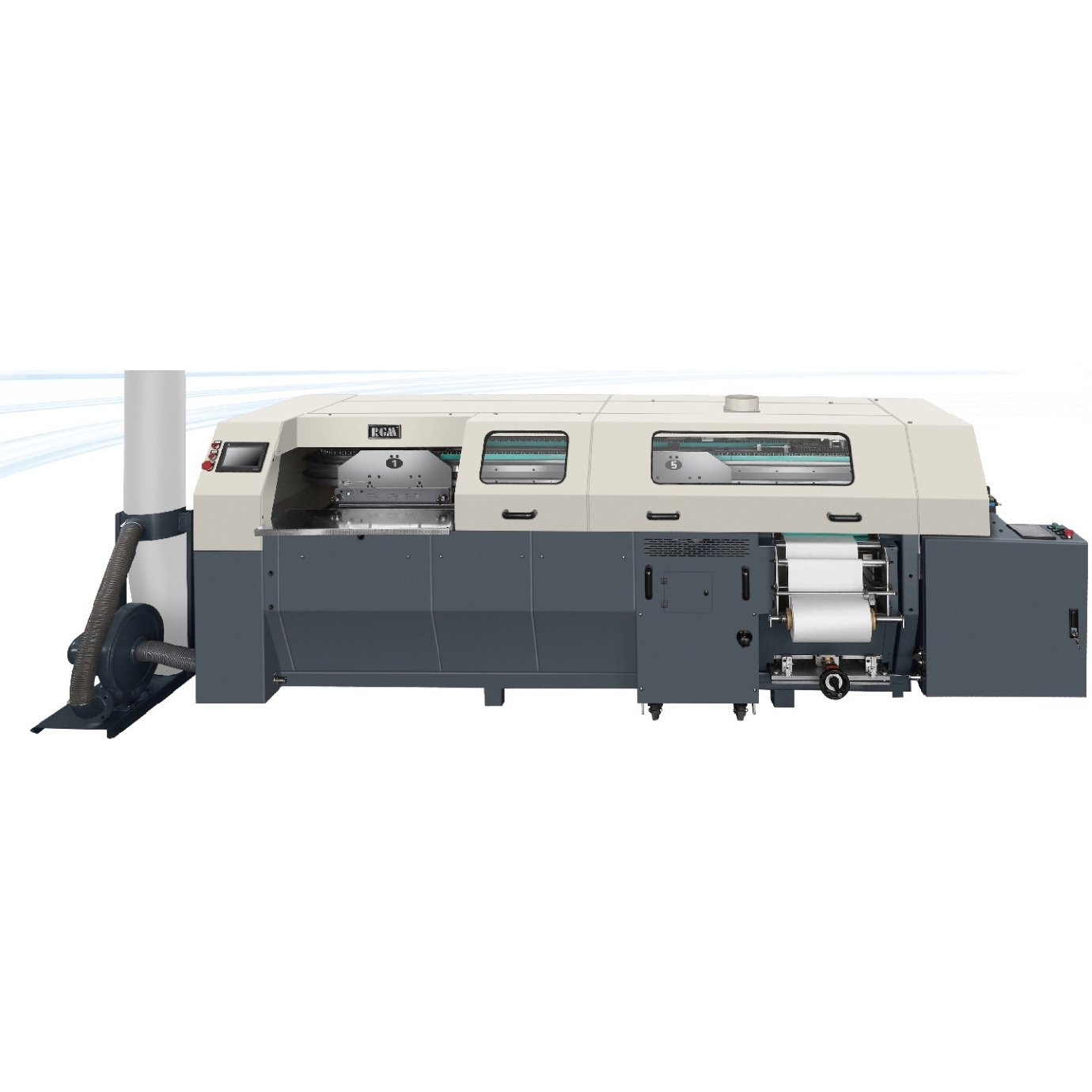

TBT50/5E PUR and EVA glue perfect binding machine is multi functions binding machine with advanced technology in 21th century.lt can paste paper scrip and gauze And also can be used for sticking big sizes cover in the mean- time or use alone.The Interchange between EVA and PUR s very fast.
This machine is controlled by a frequency controller and PLC.lit is assembled with photoelectric cells,auto tester and touch screen displayer.There is digital display function in the glue breaking function back and forth.mil back.glue breaking glue pot and covering adjustment in gluing in the back.The press track wheel has micro adjustment functions constantly,and the book acceptance structure is level method and protects the book back forming in better wey.This machine not only uses lock line suing packaging.but also unwiring gluing packaging which is the deal equipment for the unwiring gluing packaging and wiring packaging in the printing factories of wide-range universities

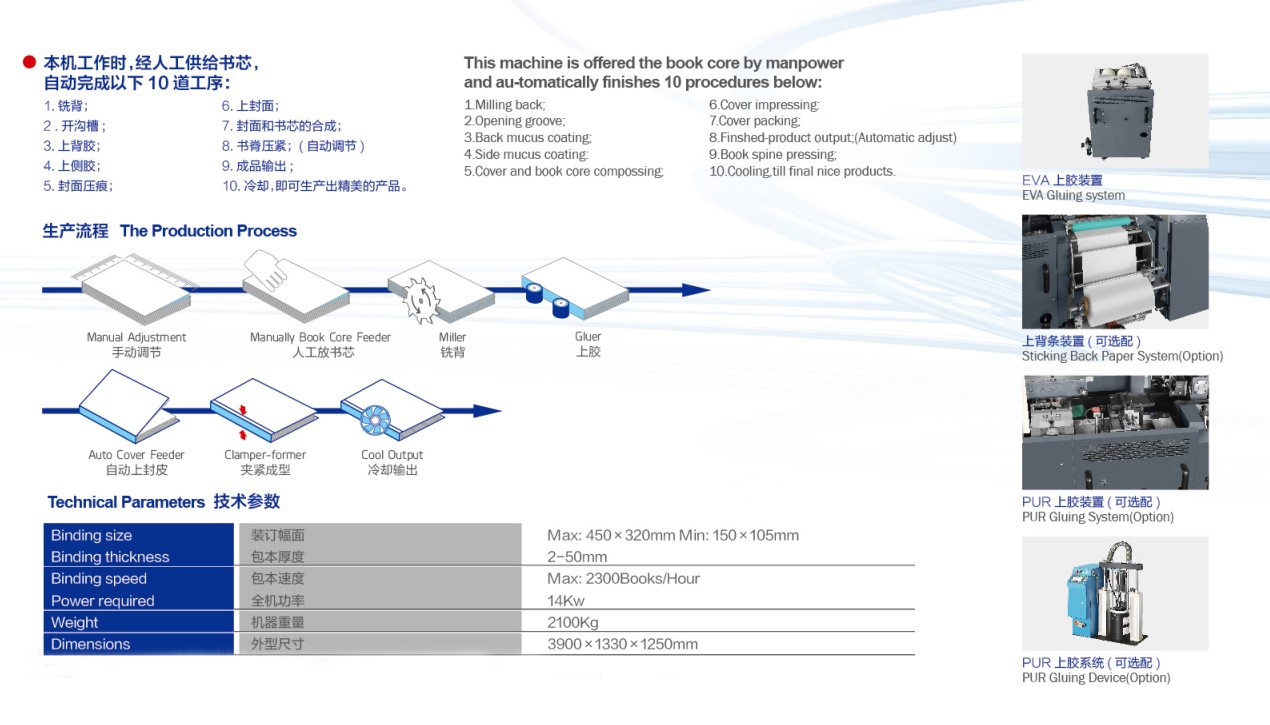

This machine is offered the book core by hand and automatically finishes 10 procedures below:
1.Milling back;
2.0pening groove;
3.Back mucus coating;
4.Side mucus coating
5.Cover and book core compassing
6.Cover impressing
7.Cover packing:
8.Finshed-product output;(Automatic adjust)
9.Book spine pressing;
10.Cooling,till final nice products.
Detailed Data:
| Binding size
Binding thickness |
装订幅面
包本厚度 |
Max:450×320mm Min:150×105mm
2-50mm |
| Binding speed
Power required |
包本速度
全机功率 |
Max: 2300Books/Hour
14Kw |
| Weight | 机器重量 | 2100Kg |
| Dimensions | 外型尺寸 | 3900×1330×1250mm |
Sample for Glue Book Binding Machine
Video
