HL-SX160/43Digital-controlledFullyAutomaticBookSewingMachine

Book Sewing Machine

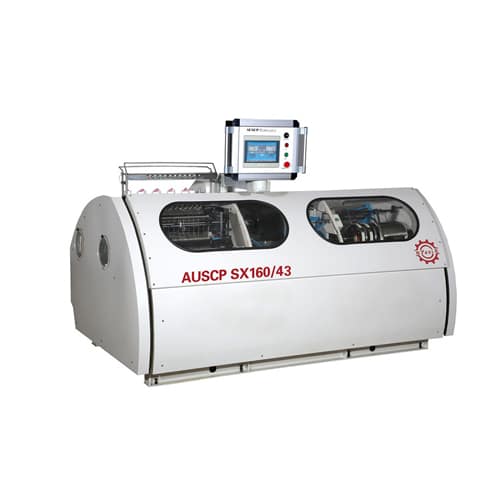

HL-SX160/43 Digital-controlled Fully Automatic Book Sewing Machine

HL-AUSCP SX160/43 Digital-controlled Fully Automatic Book Sewing Machine consists of sheet-separation, sheet-turning, transferring, positioning, sewing, thread-cutting, book-separation, thread end-cutting and computer-controlled system. The whole machine is produced in one piece.

  • Product Detail
  • Features

HL-AUSCP SX160/43 Digital-controlled Fully Automatic Book Sewing Machine consists of sheet-separation, sheet-turning, transferring, positioning, sewing, thread-cutting, book-separation, thread end-cutting and computer-controlled system. The whole machine is produced in one piece.

Unit functions, features:

Intelligent control: the maximum speed of up to 160 / min, color touch screen, monitoring the whole process into paste, transport, multi-paste, paste leak, sewing, stickers and other close working links to ensure the quality of sewing;

Stick with automatic error detection function “optional”;

Fault detection: the emergence of the lack of posts, machine alarm when leakage posts, more posts, congestion, out posts, shrink posts and disconnection and other failures and downtime, displaying fault.
Fault alarm: Machine automatically stops when fault alarm blares

Memory: It stores sewing programmes for future use.

Automatic changeover: Use touchscreen to automatically change job size

Automatic changeover: Automatic changeover via touchscreen. By pressing the START on touchscreen, the convoy belt, sheet-turning gear, chains and wheels move to working position automatically.

Signature separation: signatures are separated by blower and mechanical arms.

Automatic Sheet-turning: eight computer-controlled sheet-turning gears

Signature-transferring: transferring open signatures through guide rail transferred by chain hook into transferring wheel,The speed of transferring wheel is automatically adjusted.

Book-separation and thread-cutting: Separate books and cut the end of thread to about 10mm. Straight and cross sewing: Needles of diameter(¢1.6mm)with 19mm between each other provides high sewing quality. Sewing gears are cam-controlled. It’s easy to change between straight and cross way of sewing.

Lubrication: Central lubrication system. Alarming in want of oil. Timing lubrication system.

Detailed Data:

Max. mechanical speed 160 cycles/min Min signature sewed 2帖 2Post
Max. size (H x L) 430x320mm Available openings 4 above, 4below +1 lap
Min. size (H x L) 120x75mm Rated power 5kw
Number of stitch positions  10 groups Standard voltage 400V, 50 Hz, 3 phases
Stitch lenght 19 mm Air consumption (external supply) max. 1.0m3/min at  8bar
Needle diameter ¢1.6 mm Net weight 4000Kg
Single signature thickness 0.5~1.5mm Measures 2700×1600×1700mm
Max. size     320     430     1.5mm Min. size      75      120     0.5mm AUSCP SX160/43



Sample for Automatic Book Sewing Machine
