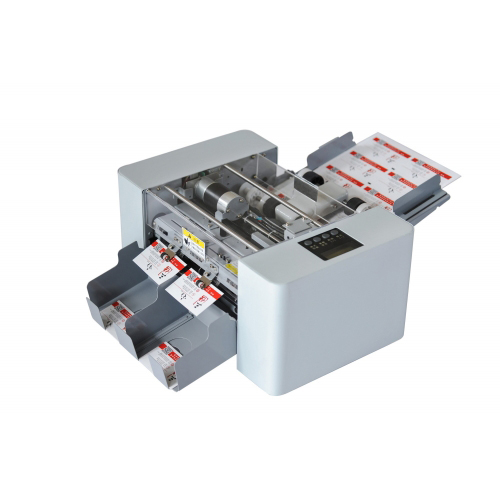

HL-QKA4 Multi-functional name card cutter can Cut A4 card into ten at one time, no longer worried that the frequent repetition of feed and labor, while 15pcs of paper of 200g can be set in one time, comparing the previous semi-automatic machine , there is a tremendous advantage. Memory of five different specifications, automatic detection of paper, liquid crystal display, adjustable specifications, the use of a convenient, which make our machine the first intelligent machine equipment in our area.
Detailed data:
HL-QKA4 Multi-functional name card cutter
| Model |
QZA4-I(low speed) |
QZA4-II(middle speed) |
QZA4-III(High speed) |
| Paper size |
A4(297*210)mm A4(295*195)mm |
A4(297*210)mm A4(295*195)mm |
A4(297*210)mm ;A4(295*195)mm |
| Cutting type |
Longitudinal: roller knife roll cutting;Lateral: long knife cutting |
| Feeding type |
Double friction type automatic feeding |
| Paper thickness |
0.20mm(180g/m²)—0.35mm(350g/m²) |
0.20mm(180g/m²)—0.35mm(350g/m²) |
0.20mm(180g/m²)—0.35mm(350g/m²) |
| Paper type |
Card paper, coated paper, white card paper, special paper |
Card paper, coated paper, white card paper, special paper |
Card paper, coated paper, white card paper, special paper |
| Cutting speed |
30pcs/min low speed |
80 pcs/min middle speed |
120pcs/min High speed |
| paper capacity |
12pcs or 3mm |
12pcs or 3mm |
12pcs or 3mm |
| Cross cutting |
40-250mm |
40-250mm |
40-250mm |
|
Cross cutting |
2-90mm stardard |
2-90mm stardard |
2-90mm stardard |
| 2-85mm selecting |
2-85mm selecting |
2-85mm selecting |
| 2-89mm selecting |
2-89mm selecting |
2-89mm selecting |
| 2-95mm selecting |
2-95mm selecting |
2-95mm selecting |
| Machine size |
590 mm×515 mm×325 mm |
590 mm×515 mm×325 mm |
590 mm×515 mm×325 mm |
| Weight |
19 kg |
19 kg |
19 kg |
| Power |
AC 90-260V，50/60HZ, 5A |
AC 90-260V，50/60HZ, 5A |
AC 90-260V，50/60HZ, 5A |
