Haoly Machine
HL-JYDII Electricity-Power Single Head Eyelet Machine are widely used for manufacture the hanging rings of hand bag and box; The bookbinding and layout of confidential or normal files,The counterfeit-proof bookbinding of certificates, cards or commodity packing. Manufacture the air hole or lacelock of clothing, leather goods, mattress, bags and boxes.
Main Features:
Available for continuous eyelets feeding. Easy operation, Feeding eyelets, puncture and bending edge all finished in one move. After binding, eyelets edge is smooth and good looking; locking strength is strong, not easy to tear out. This eyeleting machine use electric power in place of labor power. It save the operator work force and improve working efficiency greatly. The main electrical apparatus elements adopt imported advanced equipments. All electric parts are designed with short- circuit protection, overheating protection and overcurrent protection to ensure the machine security and reliable operation. JYDⅡ is improved on JYD model which got rid of the electromagnet and clutch parts use the motor reducing gear to directly drive. By this way, it is decreased noise greatly. Meanwhile it is added counting, working speed control, single-continuous working control features. All improvements make the eyeleting machine smooth and stable performance.
Detailed Data:

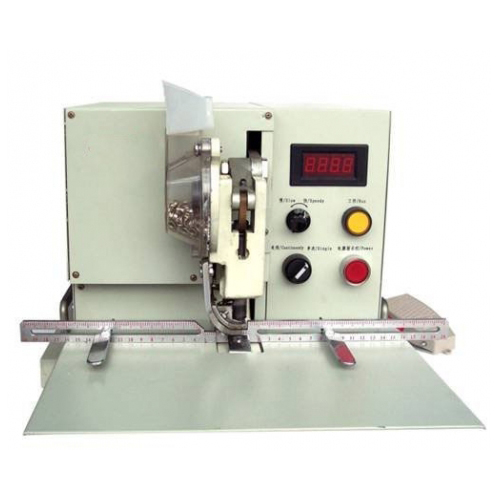

HL-JYDII Electricity-Power Single Head Eyelet Machine
| Models | JYDII4 | JYDII5.5 |
| Binding Thickness(mm) | ≤3 | ≤3 |
| Eyelets Pore Diameter (mm) | 4 | 5.5 |
| Max stroke (mm) | 165 | 165 |
| Volume capacity of eyelets(piece) | 1200 | 900 |
| Power of motor(kw) | 0.24 | 0.24 |
| Speed(puncture/min) | ≤55 | ≤55 |
| Rated voltage | 220V,50Hz | 220V,50Hz |
