Haoly Machine
Machine Name: HL-HTR33 Large plane thermal transfer machine
Description:
Technical parameters:
Envelop dimensions: 3700 * 1200 * 1800 mm power supply voltage: AC380V frequency 50 HZ
Equipment power: 6200 W air source voltage: 0.6 mpa to 0.8 mpa
The biggest hot stamping area: 580 mm table size: 1400 X600mm
The biggest go traveling: 2400 mm is the biggest hot stamping thickness: 200 mm
Allows setting temperature scope: 0-240 ° (260 ° rubber wheel heat resistance)
The film motor: AC220V 90 W constant temperature motor: AC220V 40 W
Aspiration motor: AC380V 750 W
Horizontal go motor: AC380V 750 W biggest electric heat: AC220V 4200 W
Product description:
- The product is the latest gantry gate area plane heat-transfer machine
- This product longmen type design, improve the furnace head pressure stability, are microcomputer control, the operation is simple, accurate control. For synchronous belt transmission and stepping motor control, low noise, high precision, stability and movement speed can be adjusted.

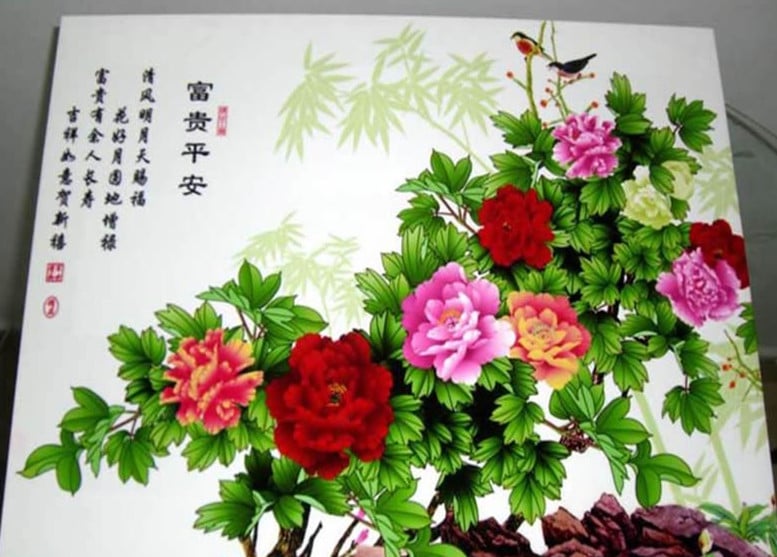

- The products are suitable for large area plane, the plane of the thermal transfer of various products.
thermal transfer machine
About us
Zhejiang Haoly Limited combines extremely competitive price, innovative technologies and long-standing exporting experience in the Post press machine, printing machine,and packaging machine, and quick printing machine.We are your best selection for printing and packaging industries.
In past ten years, Lanxi Jinhua Machine Company is Focusing on machine for wire-stitched exercise books, ruled and sheeting, soft and hard cover book.Can manufacture full automatic exercise book making machine, exercise book ruling machine, book sewing machine, casing in machine, hard cover making machine, three side trimmer, saddle stitching machine, glue binding machine, and other post press machine.
we also can provide kinds of printing and packaging machine, such as
1. Post press machine: paper cutting machine, laminating machine, creasing and die cutting machine, hot stamping machine, paper folding machine, paper collating machine, paper punching machine, eyelet machine
2. Printing Machine: Offset printing machine, Pre-press machine, Flexo Printing machine, card printing machine
3. Quick printing machine: small paper cutter, digital Creasing machine, small glue binding machine.
4. Paper product making machine: gluer folder, paper box machine, paper bag machine, paper cup machine, envelope making machine
We are an actual factory and manufacturer with trading in the line of postpress machine and package machines for more than 10 years.
1. 30 years of production experience with good quality. All our machines have got CE certificate.
2. Competitive price in the same level quality of paper cutting machines.
3. Thoughtful pre-sale and after-sale service. Any questions, pls feel free to contact us.
For most orders, payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery. And we also accept other way like L/C, wetern union etc.
1. Uauslly ,most machine is stable and easy to operate, With the help of videos and instructions, you can quickly learn how to operate.
2. If still cannot operate, We offer online training and video instruction
3. If you need to dispatch an engineer, please contact us for detailed consultation
