Haoly Machine

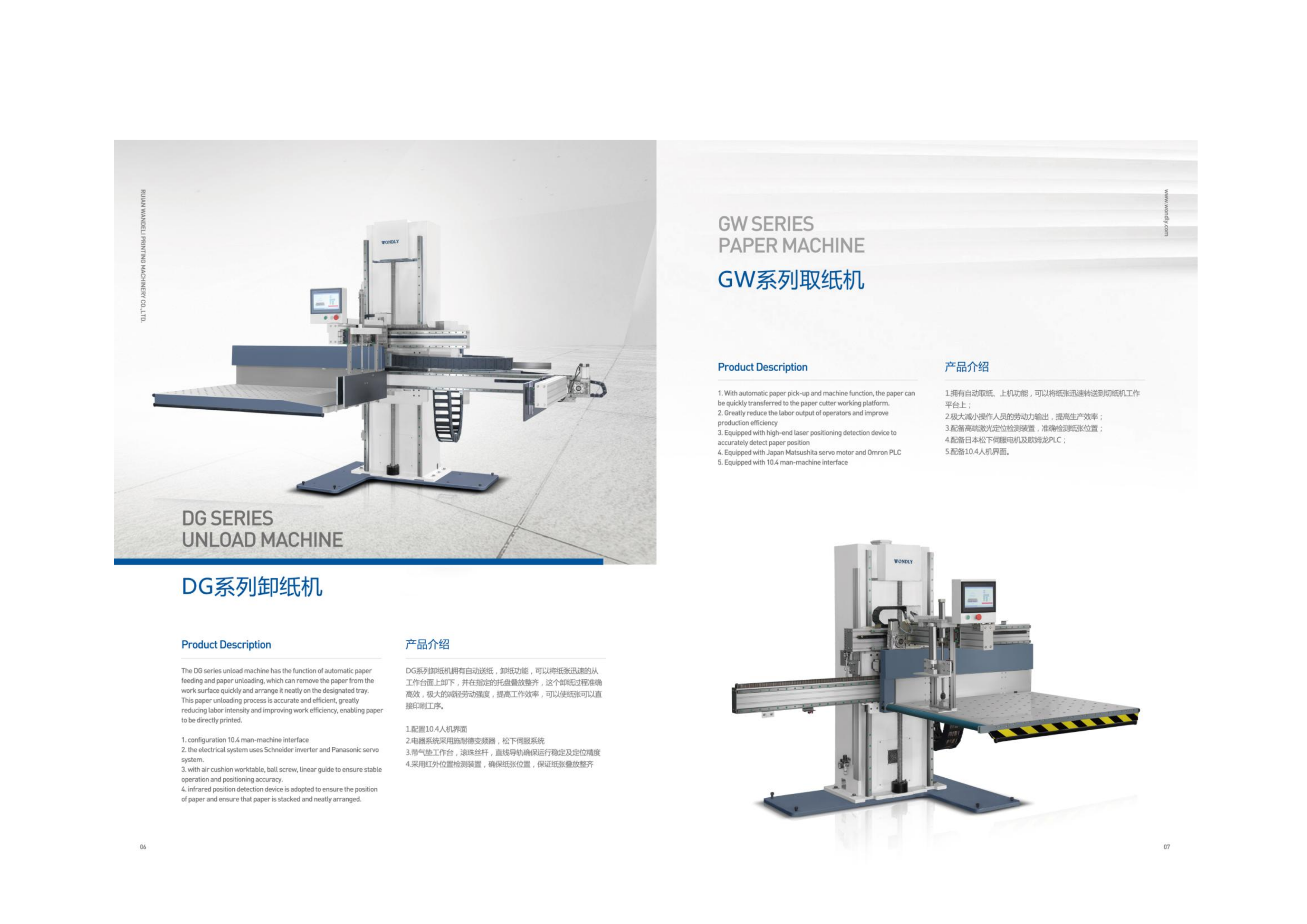

HL-DG Paper unloading machine series unload machine has the function of automatic paper feeding and paper unloading, which can remove the paper from the work surface quickly and arrange it neatly on the designated tray.
This paper unloading process is accurate and efficient, greatly reducing labor intensity and improving work efficiency, enabling paper to be directly printed.
1. configuration 10.4 man-machine interface
2. the electrical system uses Schneider inverter and Panasonic servo system.
3. with air cushion worktable, ball screw, linear guide to ensure stable operation and positioning accuracy.
4. infrared position detection device is adopted to ensure the position of paper and ensure that paper is stacked and neatly arranged.

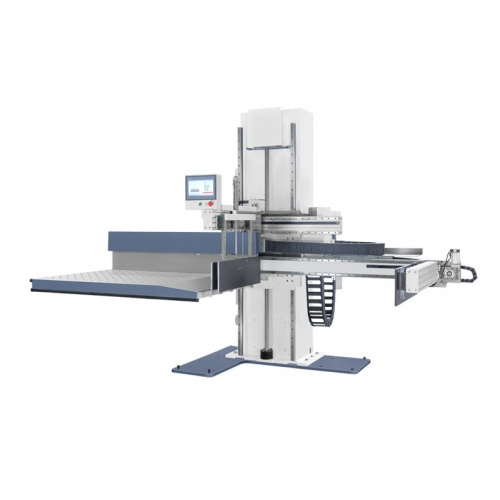

HL-DG Paper unloading machine
Detailed Data:
| Model | / | DG-1 | DG-2 | DG-2H（加高） |
| Total length (A) | mm | 3000 | 3300 | 3300 |
| Guardrail (A+) | mm | 3200 | 3500 | 3500 |
| Depth（B） | mm | 1700 | 1800 | 1800 |
| Total height (H) | mm | 2000 | 2000 | 2400 |
| Platform length（D) | mm | 1260 | 1600 | 1600 |
| Platform width(C） | mm | 880 | 960 | 960 |
| Max. width(E) | mm | 860 | 940 | 940 |
| Max.width(F) | mm | 1100 | 1260 | 1260 |
| Packing size(L*W*H) | mm | 2800*1800*220 | 3000*1900*2200 | 3000*1900*2600 |
| Net weight | kg | 1000 | 1100 | 1200 |
| Compressed air | bar | 5–8 | 5–8 | 5–8 |
| Power | 3相，360V-420V，50/60HZ |
