Haoly Machine

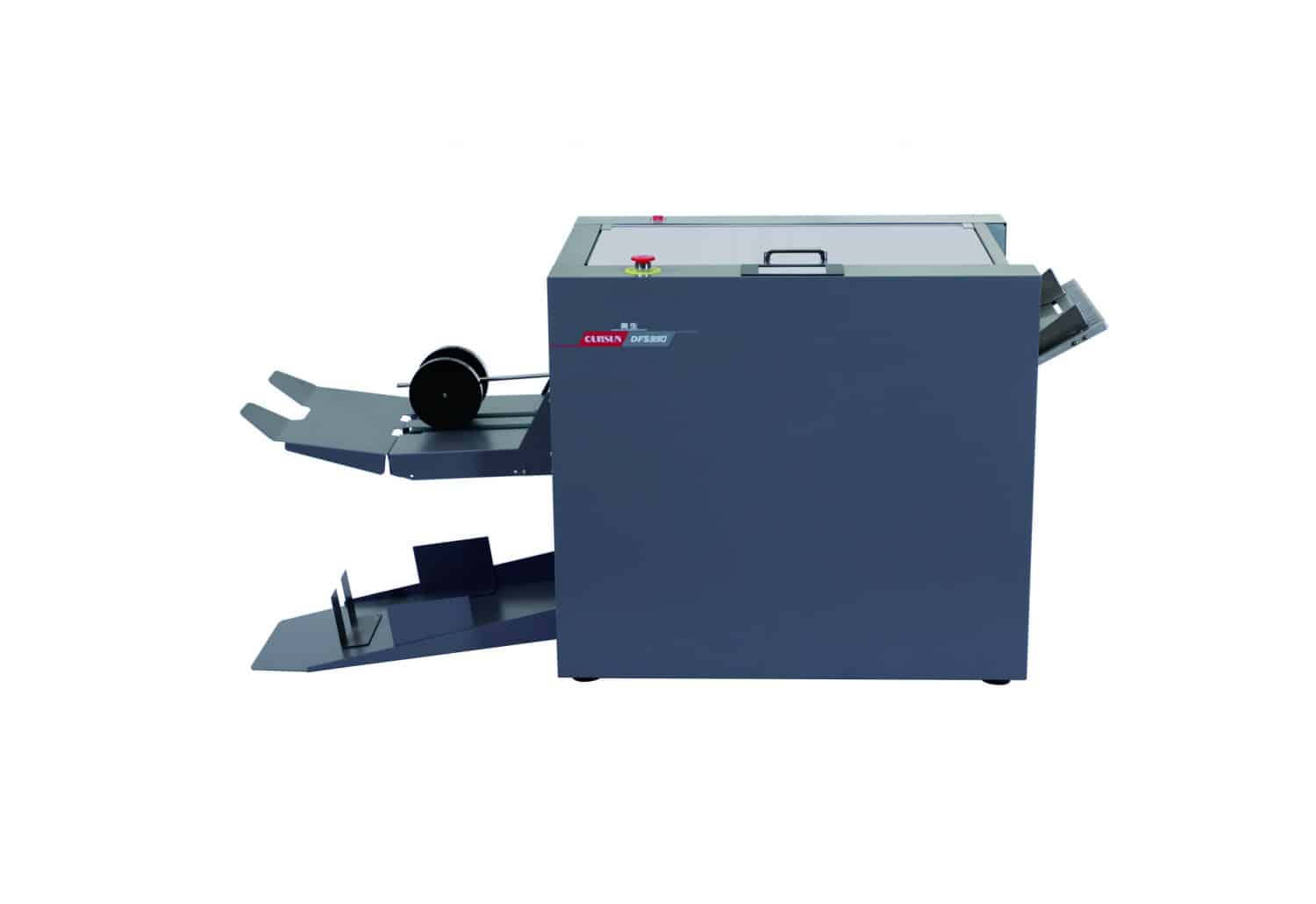

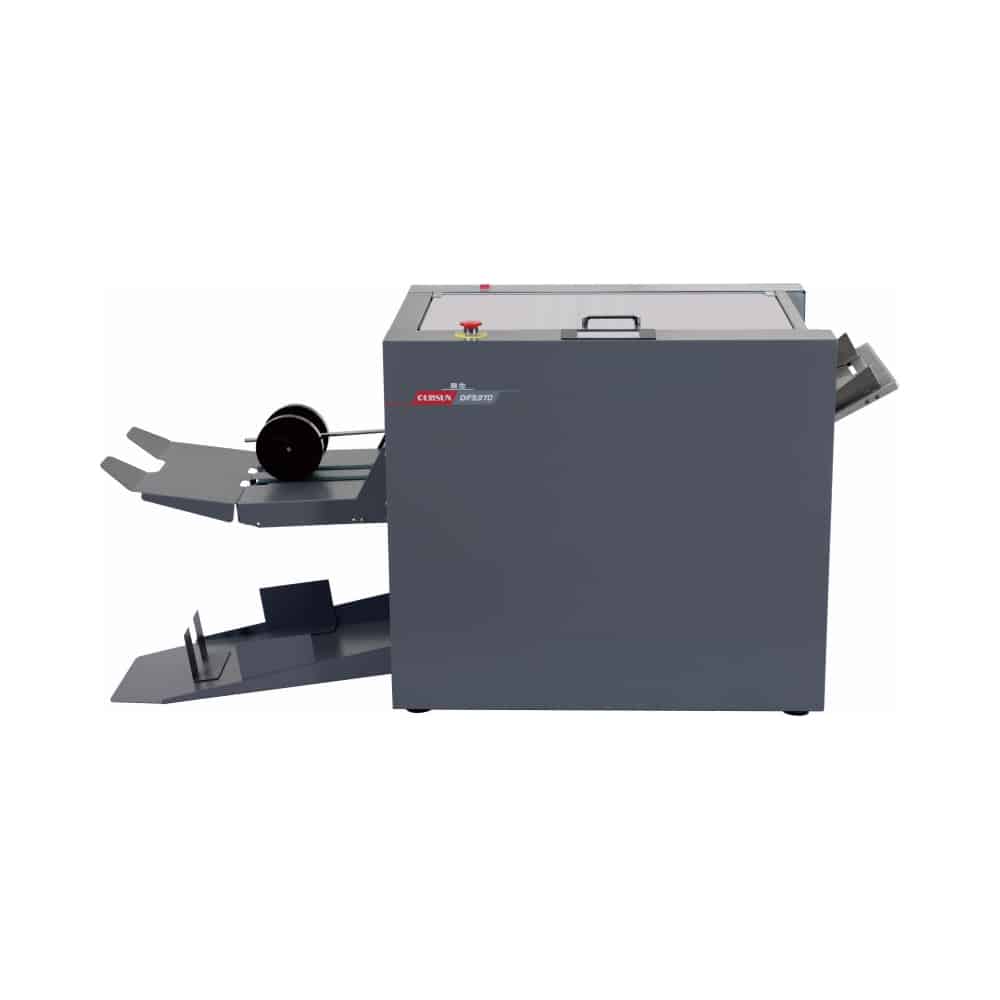

HL-DFS370/DFS370S booklet making machine is a booklet maker with extremely easy operation and automatic paper size changeover with speed production 2600 booklet per hour of A4 booklets.
Simply select stitching type and input paper size on the screen, the paper jog guides inside the machine positioned for input paper size which is only taken 5 seconds be ready for stitching.

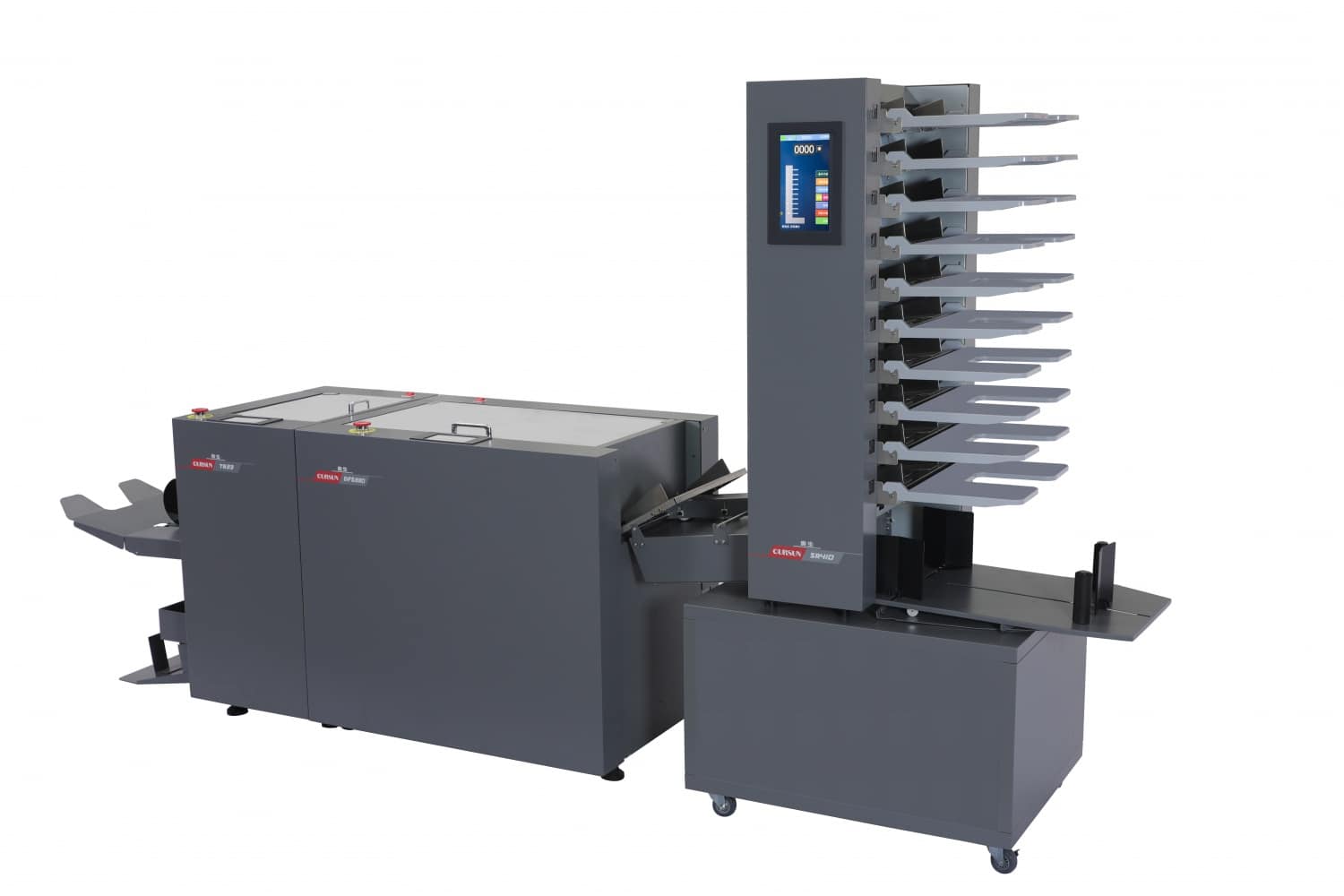

DFS370 working as part of a booklet making system with SR series collator, the system offers a cost effective solution for finishing needs.
DFS370S working as a part of booklet making system with HA610 suction collator, the system offers various printed solution for finishing needs.
DFS370/DFS370S is equipped with Hohner wire stitching heads.
Detailed Data:
| Model | DFS370/DFS370S |
| Stitching Heads Type | wire stitching head |
| Stitching Mode | saddle stitching, side stitching, fold only |
| No. of Stitching Heads | 0-2 |
| Paper Thickness | 60-300 gsm |
| Paper Size of Saddle Stitching |
L260 to 490 mm |
| W 155 to 330 mm | |
| Paper Size of Side Stitching |
L 135 to 270 mm |
| W 155 to 330 mm | |
| Stitching Thickness of Saddle Stitching / folding Thickness |
25 sheets (2.5mm) |
| Side Stitching Thickness | 50 sheets(5mm) |
| Speed | 2600 sets/h (A410 sheets 80g) |
| Distance between 2 Stitches |
A3:138 mm A468 mm |
| Power Consumption | 110V~220V,50Hz/60Hz,150W |
