Haoly Machine

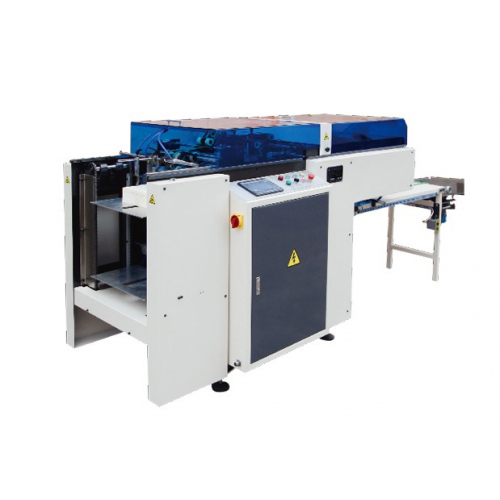

HL-CK-600 full automatic Paper hole punching machine is an equipment specialized in paperboard punching, mainly used for binding hole punching in the calendar, notebook, exercise book, gray cardboard, PP board, etc.
This machine can feed papers automatically by step drive and can adjust paper thickness. After the suction nozzle feed the machine on the conveyor belt, the paper will be carried into the punching dies area. After it is trimmed tidily, it will start to punch. Then the punched paper is delivery to the stacker. The paper sizes and page margins can be adjusted. We can punch various holes by replacing different shapes punching die.
automatic Paper hole punching machine
Detailed Data:
| Model | CK-600 |
| Max Paper Size (L×W) mm | 600×550 |
| Min paper Size (L×W) mm | 120×100 |
| Max.Punching Width mm | 600 |
| Max.paper Thickness mm | 60-350gsm |
| Height of foil unit mm | 880 |
| Max.Working speed cycles/hr | 7800 |
| Working speed cycles/hr | 5400 |
| Min.Working speed cycles/hr | 900 |
| ltinerary mm | 13 |
| Power Supply kw | AC380v/3PH/50HZ |
| Power Consumption kw | 3 |
| Air compressor | 0.37 |
| Machine dimensions(W×D×H) mm | 2800×1200×1250 |
| Net weight kg | 1400 |
Punching die
Video of HL-CK-600 full automatic Paper hole punching machine
About us
Zhejiang Haoly Limited combines extremely competitive price, innovative technologies and long-standing exporting experience in the Post press machine, printing machine,and packaging machine, and quick printing machine.We are your best selection for printing and packaging industries.
In past ten years, Lanxi Jinhua Machine Company is Focusing on machine for wire-stitched exercise books, ruled and sheeting, soft and hard cover book.Can manufacture full automatic exercise book making machine, exercise book ruling machine, book sewing machine, casing in machine, hard cover making machine, three side trimmer, saddle stitching machine, glue binding machine, and other post press machine.
we also can provide kinds of printing and packaging machine, such as
1. Post press machine: paper cutting machine, laminating machine, creasing and die cutting machine, hot stamping machine, paper folding machine, paper collating machine, paper punching machine, eyelet machine
2. Printing Machine: Offset printing machine, Pre-press machine, Flexo Printing machine, card printing machine
3. Quick printing machine: small paper cutter, digital Creasing machine, small glue binding machine.
4. Paper product making machine: gluer folder, paper box machine, paper bag machine, paper cup machine, envelope making machine
We are an actual factory and manufacturer with trading in the line of postpress machine and package machines for more than 10 years.
1. 30 years of production experience with good quality. All our machines have got CE certificate.
2. Competitive price in the same level quality of paper cutting machines.
3. Thoughtful pre-sale and after-sale service. Any questions, pls feel free to contact us.
For most orders, payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery. And we also accept other way like L/C, wetern union etc.
1. Uauslly ,most machine is stable and easy to operate, With the help of videos and instructions, you can quickly learn how to operate.
2. If still cannot operate, We offer online training and video instruction
3. If you need to dispatch an engineer, please contact us for detailed consultation
