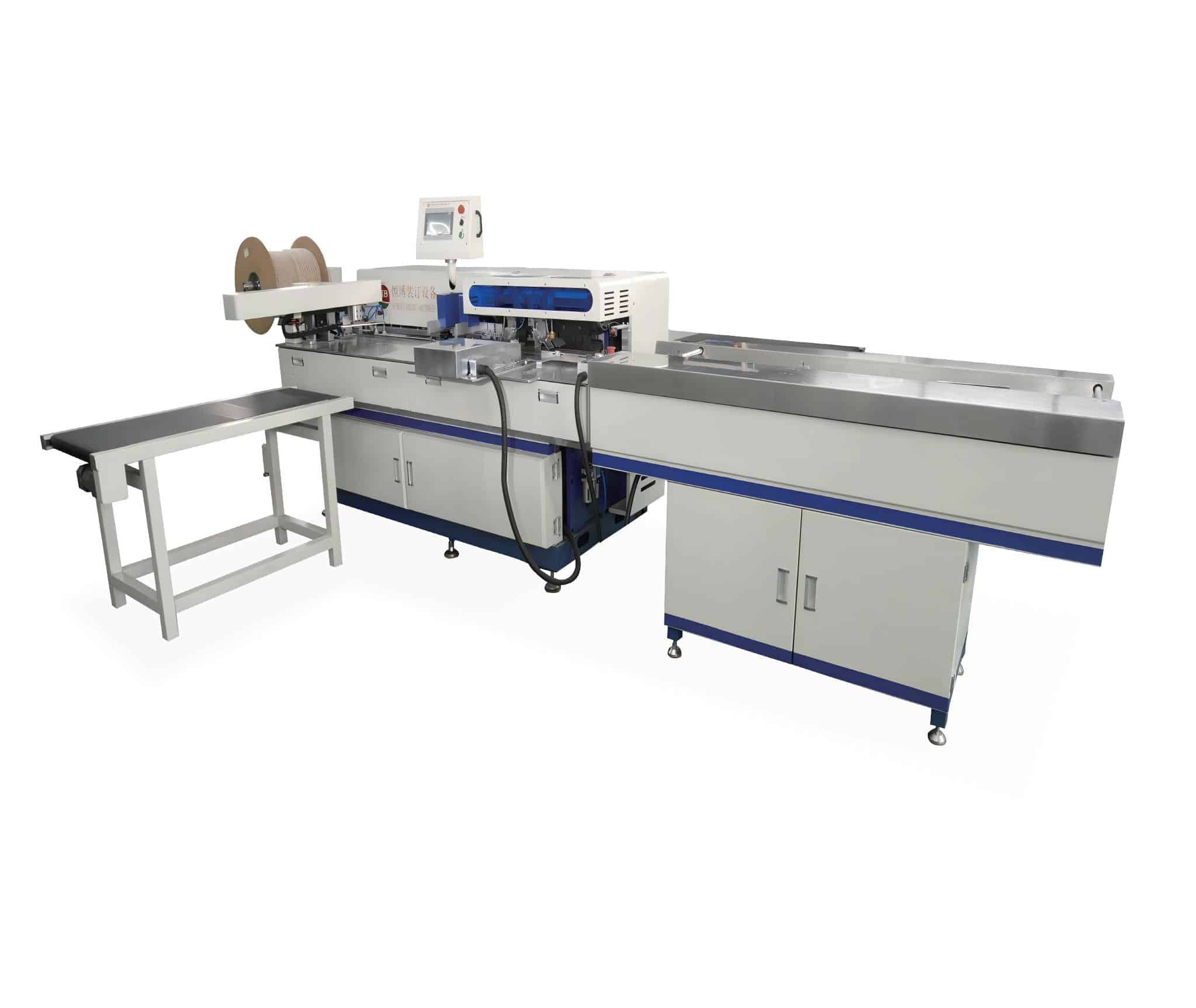

HL-520PB Automatic double loop wire notebook punching and binding machine is an automatic machine that combining punching and binding function. We are the first one whom design and manufacture this machine in China. So we have many patents of this machine.
High speed and stable, only need 1-2 person to opetate and very easy to adjust. Highly improve efficiency and save cost.
Feature:
1. Automatic feeding, paper/cover punching and binding in one machine;
2. Only need 1-2 person to operate;
3. High quality mould, can punch 6mm for one time. And can choose punching times for one to five times.
4. Automatic oil delivery system, two working sides of punching mould. Can be changed in a very short time and long lift time than normal mould;
5. Can finish the product even though the cover is bigger than the inner sheets;
6. Automatic alarm and display function, engineer can act promptly.
Detailed Data:
| Model | HL-520PB |
| Working speed | 800-2000 books/hr |
| Punching thickness(one-time) | 1-6mm |
| Max. punching thickness | 13mm(16mm for special product) |
| Max times of punching for one book | 5 times |
| Max. book size | 510mm(punched side)*800mm |
| Min. book size | 100mm(punched side)*140mm |
| Max. book size for feeding belt | 420mm*420mm |
| Size of double loop wire | 1/4″-5/8″ |
| Pitch | 2:1, 3:1 |
| Width of paper for binding | 100-520mm |
| Air pressure | 0.7-0.8Mpa |
| Power | 220V/ 50-60Hz/ 1PH/ 4.5kw |
| Net weight | 2000kg |
| Machine dimension | 4800*2600*1600mm |
VIDEO OF HL-520PB Automatic double loop wire notebook punching and binding machine
