HL-47DF/56DF/62DF two side one color offset press machine has upper and lower six-roller unit structure; the machine could achieve single pass duplex printing; high degree of automation; heavy machine structure; whole cast iron wall panel; latitudinal feeding; fast version of clip; frequency control; PLC microcomputer control; photoelectric automatic clutch pressure; motor-driven is no-class water supply; accurate positioning; four rows of high-profile delivery teeth could reduce paper adhesion; electrostatic process; electromagnet energy is significant energy saving.

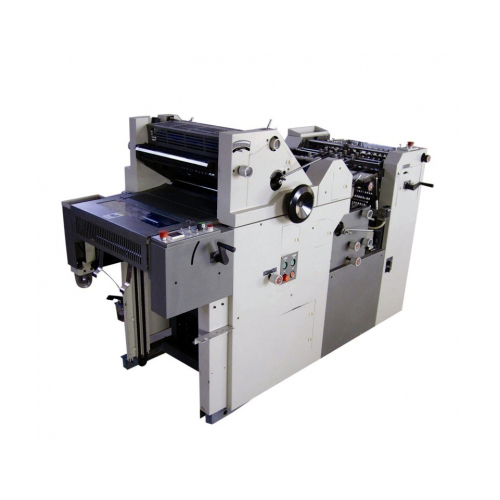

two side offset press machine
Detailed data
| MODEL | HL-47DF | HL-56DF | HL-62DF |
| Maximum paper size | 470*365mm | 560*400mm | 620*450mm |
| Maximum printing area | 450*345mm | 550*375mm | 605*440mm |
| Print plate size | 470*395*0.15 mm | 560*420*0.15 mm | 620*480*0.15 mm |
| Rubber blanket size | 470*420*1.95 mm | 560*460*1.95 mm | 616*505*1.95 mm |
| Paper type | 40-300g/ m2 | ||
| Number of ink rollers | 14 pieces (3 form ink rollers each unit) | ||
| Number of dampening rollers | 5 pieces(2 form water rollers each unit) | ||
| Registration mechanism | Roller type side lay | ||
| Printing speed | 2000-8000 sheets/hour | ||
| Motor power | Main motor1.5KW/220V Air pump motor0.55KW/220V | ||
| Machine size | 2305*858*1650mm | 2300*958*1650mm | 2660*1200*1800mm |
| Weight | 1150KG | 1350KG | 1550KG |
