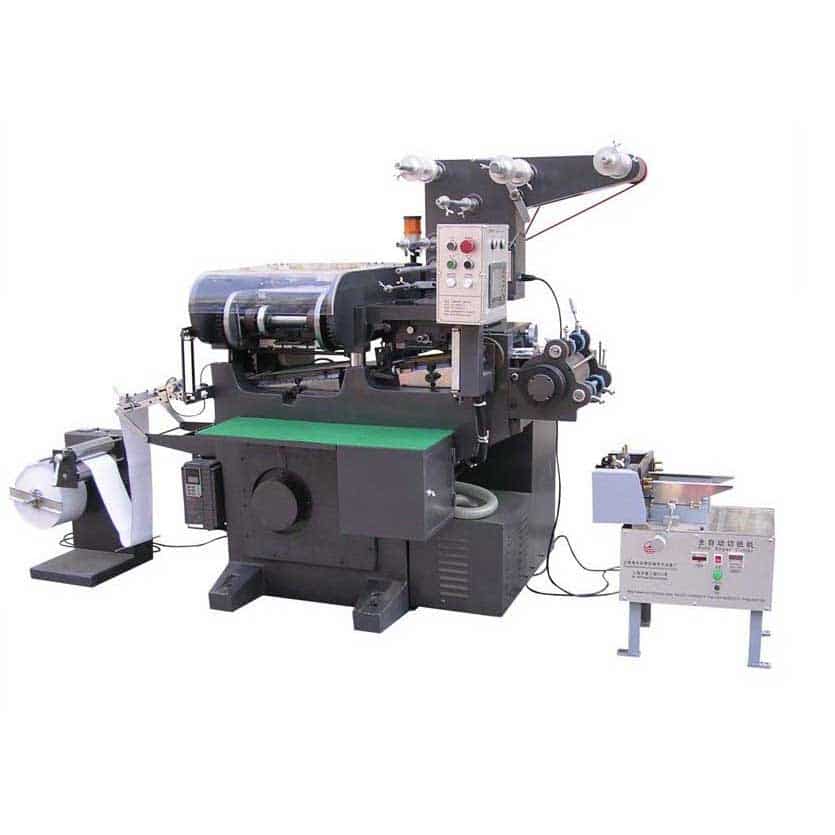

HLSB-A210T CNC control high speed oblique adhesive printing machine STANDARD ACCESSORIES
SELECTIVE FUNOTIONS
HL210T – This machine is digitally controlled by PLC computerize system. The movement is driven by servo motor. Printing setup via operation display with maximum length up to 500mm. The photo sensor tracking system allows repeat printing for front and reverse sides of the label. It achieves accurate registration for repeat printing within 0.03mm tolerance.
1.Photo Sensor: Modell: SICK
2.Digital AC servo motor&driver.Model: MSDA 082AIG.750W.Panasonic Japan.
3.Low backlashplanetary gearboxes Model:PLE-80 Germany NEUGART
4.PLC (Programmable controller)
Modell:FUJINWOP20T-31.Japan Fuji Electric FA components & systems CO.,LTD
5.POD (Fuji programmable Operation Display)
Modell:UG221H-LE4 Japan Fuji.
6.Transistor inverter.Fuji Japan.Model:2.2KW/FRN 2.2G11S-4cx
7.Relay Contactor.Variabk Resister Germany Schneider
8.Bearing IKO.NSK.NACHI
HLSB-A210T CNC-gesteuerte Hochgeschwindigkeits-Schrägklebedruckmaschine
Spezifikationen
| Modell | HL-210T | |
| Chase Dimension (mm) | 200*300 | |
| Chase Dimension | 1-2 Color(mm) 3 Color(mm) 4 Color(mm) |
200*300 200*90 200*65 |
| MaxPaperWidth(mm) | 220 | |
| Max Hot-Stamping Area(mm) | 200*140 | |
| Max Die-Cutting Dimension(RPM) | 200*210 | |
| Druckgeschwindigkeit (P/min)(mm) | 50*200 | |
| Maschinengröße (L*B*H) (mm) | 1980*1200*1650 | |
| Maschinengewicht | Nettogewicht (kg) | 2300 |
| Bruttogewicht (kg) | 2600 | |
| Messung (CBM) | 7 | |
| Leistung & Motor | Main Drive Motor (kw) Air Suction Motor(kw)Laminating & Matrix Winder (kw) Hot-StampingHeater(kw) |
3.00 0.375 0.040 750 |
