Haoly-Maschine

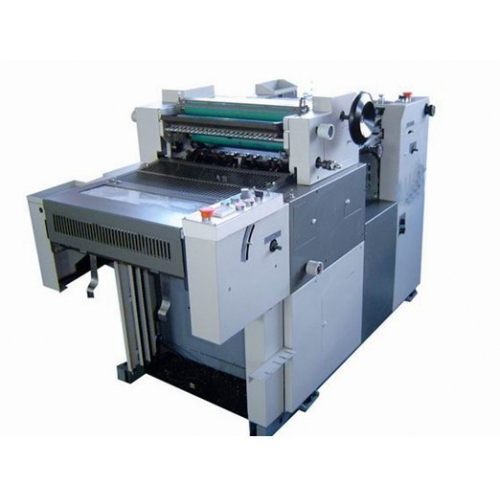

HL-DM47/56/62NP Nummerier- und Perforiermaschine für Geldscheine 1. Compact and stable structure
2. Good and precise registry system.
3. Fast speed and good efficiency
4. Multi-purpose NP system
5. Resin relief plate printing available
6. Two ink form rollers in NP system enable to get enough ink for number printing and relief printing
7. Can do simultaneously 7 X 7 horizontal numberings or 8 X 5 vertical numberings.
8. Perforating device can simultaneously perforate vertical and horizontal
9. Perforations are made precisely
numbering and perforating machine
Detaillierte Daten:
| Modell | DM-47 | DM-56 | DM-62 | |
| Max. Paper Size | 470x360mm | 560x400mm | 620x440mm | |
| Mindest. Paper Size | 180x150mm | |||
| Paper Weight | 28-250GSM | |||
| Druckgeschwindigkeit | 2000-8000 sheets/hour | |||
| Ink Roller | 6 rollers(ink form rollers: 2Stck) | |||
| Number capacity | Planer type(Lateral):
7 rowx7 column=49 Convex type(Vertikal): 5 row x8 column=40 |
Planer type(Lateral):
7 row x 8 column=56 Convex type(Vertikal): 5 row x 10 column=50 |
Planer type(Lateral):
7 row x 9 column=63 Convex type(Vertikal): 5 row x 11 column=55 |
|
| Perforation | Mindest. space between lateral perforating knives: 10mm
Mindest. space between vertical perforating knives: 30mm |
|||
| Power for main motor | 0.75KW | 0.75KW | 1.5KW | |
| pump motor power | 0.75KW | |||
| Stromversorgung | 220V/50 Hz | |||
| Maße | 1780x935x1120mm | 1900x1020x1120mm | 2060x1150x1120mm | |
| Nettogewicht | 280kg | 320kg | 370kg | |
