آلة Haoly
آلة جلب الورق HL-GW 1. With automatic paper pick-up and machine function, the paper can be quickly transferred to the paper cutter working platform.
2. Greatly reduce the labor output of operators and improve production efficiency
3. Equipped with high-end laser positioning detection device to accurately detect paper position
4. Equipped with Japan Matsushita servo motor and Omron PLC
5. Equipped with 10.4 man-machine interface

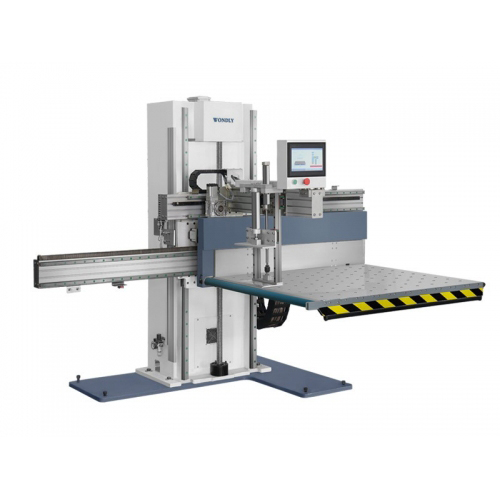

آلة جلب الورق HL-GW
بيانات مفصلة:
| نموذج | / | غيغاواط–2 | GW-2H（加高） |
| Total length (أ) | مم | 3300 | 3300 |
| Guardrail (أ+) | مم | 3500 | 3500 |
| Depth（B） | مم | 1900 | 1900 |
| Total height (ح)） | مم | 2000 | 2400 |
| Platform length（D) | مم | 1600 | 1600 |
| Platform width(C） | مم | 960 | 960 |
| الأعلى. width(E) | مم | 950 | 950 |
| Max.width(F) | مم | 1350 | 1350 |
| حجم التعبئة(L*W*H) | مم | 3000*1900*2200 | 3000*1900*2600 |
| الوزن الصافي | كلغ | 1000 | 1100 |
| Compressed air | bar | 5–8 | 5–8 |
| قوة | 3相，360V-420V，50/60هرتز |
